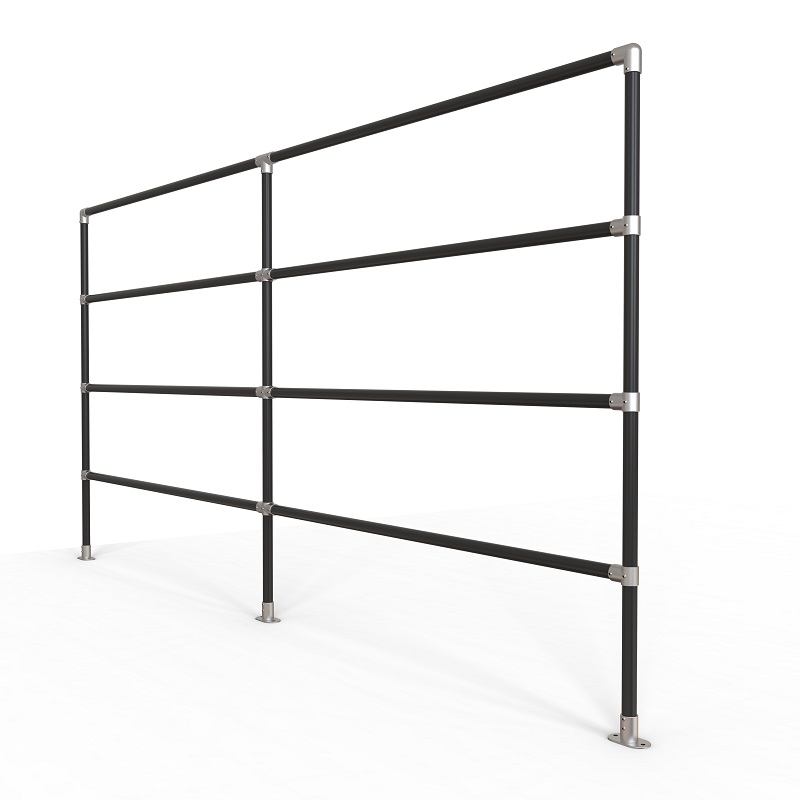

Surex Modular Tall-Rail Kits – (Black)

The Surex Modular Tall-Rail is a great way to give extra visual and physical protection to walkways, especially where pallets, machinery or other objects can obstruct the view of vehicles, forklifts and pedestrian traffic. The modular no-weld design can accommodate almost any configuration and makes it easy to assemble, install, repair, and change the configuration at a later date.

The galvanised rails and posts are supplied powder coated safety yellow, black or in their natural galvanised finish. All fittings are supplied in hot dipped gal finish making this Tall-Rail system ideal for all-weather applications.

It is important to note that this system should not be installed in a straight run – always install with 2 joined sections going at right angles to each other. If this is not possible, speak with one of our consultants and we can provide brackets and extra rails to create bracing off an existing wall or a post.

Sizes:

• Horizontal Rails: 48(D) x 2160mm
• Post Rails: 48(D) x 2160mm (overall height 2200mm)

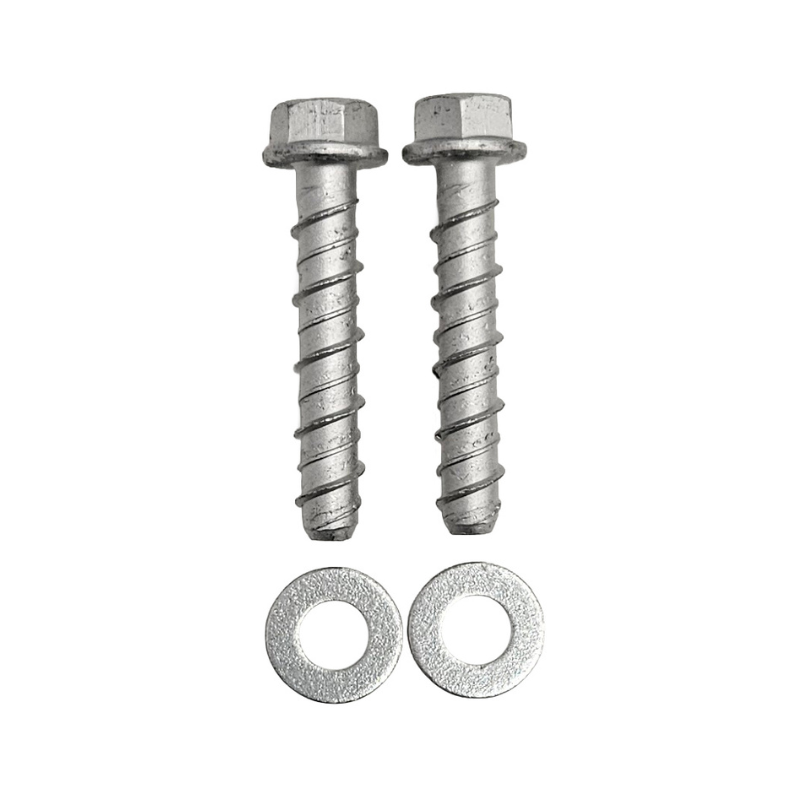

• Suggested Fixings: M12 x 75mm Screw Bolt (Requires 1 Set of Fasteners Per Base Plate)
